4x IBC / 16x Drum Cabinet Steel Sump - DPU16-4 Z/EM/DPU16-4

4x IBC / 16x Drum Cabinet Steel Bund Sump - DPU16-4
4x IBC / 16x Drum Cabinet Steel Bund Sump - DPU16-44x IBC / 16x Drum Cabinet Steel Bund Sump with sliding doors - DPU16-44x IBC / 16x Drum Cabinet Steel Bund Sump Forklift - DPU16-44x IBC / 16x Drum Cabinet Steel Bund Sump for Outside use - DPU16-4
Please contact us for price & to order.

4x IBC / 16x Drum Cabinet Steel Sump - DPU16-4

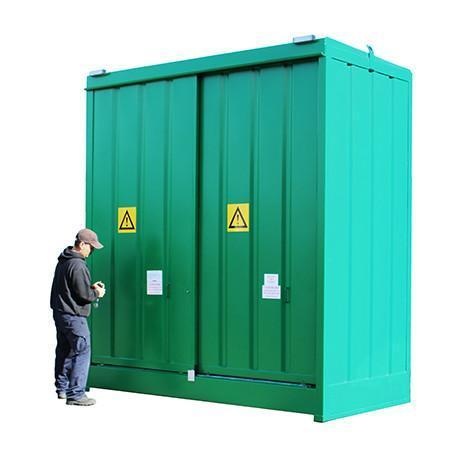

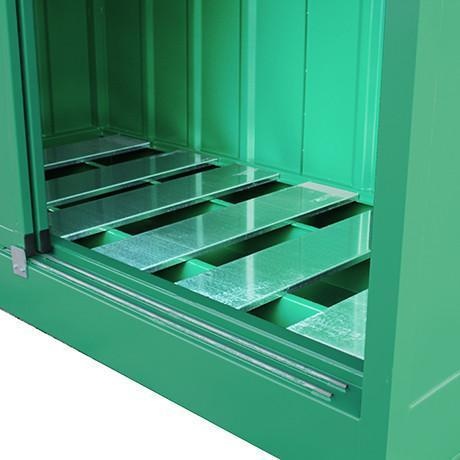

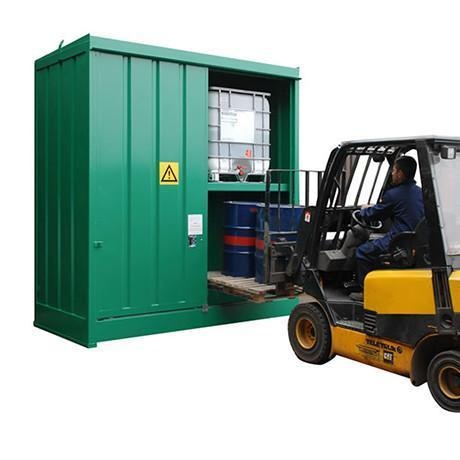

This bunded cabinet is designed to hold 4 IBCs or 16 drums on 4 pallets, pallet size up to 1.2m square, or a combination of both. The base sump is seam welded from 3mm sheet steel with box and pressed steel ribs for additional strength, giving a sump capacity of 1125 litres. There are 3 pallet channels per bay for the IBC or pallet of drums to sit on. The body and shelf framework is formed from structural box section and the outside covered with 2mm pressed sheet steel and benefits from a fully welded strong design. The sloping roof is again pressed sheet steel and braced and fitted with crane lifting points.

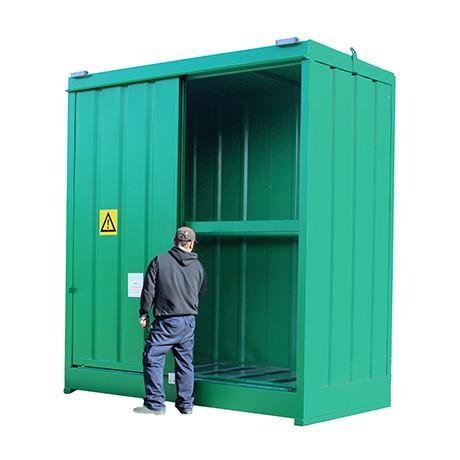

The 2 easy glide sliding doors are fabricated from 2mm sheet steel and fitted with a robust centre lock with keyed handle to make the bunded container secure.

The IBC sump container complies with all current UK regulations for the safe storage of IBCs and drums.

Available as optional extras are:
- Air vents
- Galvanized steel grid mesh so pallet not needed

These drum sump cabinets are built to order and these options (or any other requirement) can be incorporated during manufacture of the cabinets. Typical lead time is about 3 weeks. Please contact us with your requirements for more details.

The paint spec is a high build, quick drying primer/topcoat paint specifically designed for use directly on to metal or bare steel This paint contains zinc phosphate anti-corrosive pigments and is applied with a minimum dry film thickness of 75 microns.
If you require any additional information or technical details regarding this drum sump cabinet please contact us as our staff are at your full disposal.

Delivery is FREE to mainland UK, excluding Northern Ireland, Scottish Highlands and Islands. Please call for a delivery price to these regions. Prices do not include VAT. Drum and IBC bund storage cabinets are despatched on a 5 day delivery service. For a small additional cost, we can deliver on a lorry with a Hiab crane.

IBC bunded storage cabinet with sump
Model DPU16-4
External Dimensions L3000mm x W1500mm
Max O/A Height 3295mm
Door Aperture (each side) W1290mm x H2795mm
Storage Capacity 4 IBCs or 16 x 205 litre drums
Sump Capacity 1125 Litres
Net Weight 1160 Kg
Colour as Standard Green RAL6029
